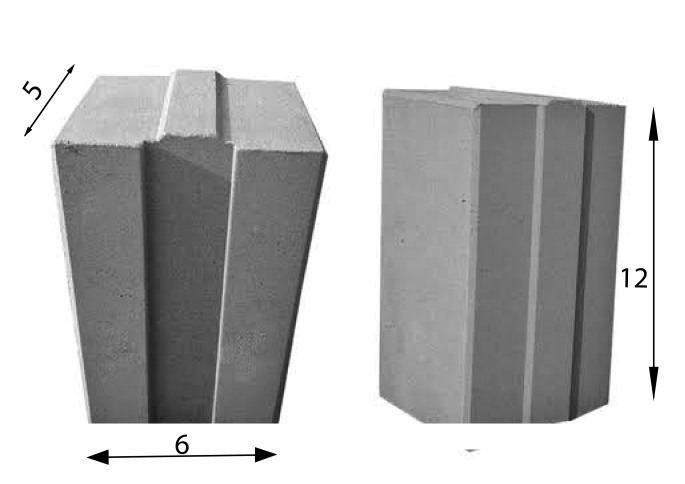

DIMENSION
| Length | Breath | Height | Weight |
|---|---|---|---|
| 12” | X 6” | X 5” | 12.000 KGS |
| 12” | X 8” | X 5” | 15.000 KGS |
6"X 5"
6"X 5"
8"X 5"
8"X 5"
| Burning | Nil |
|---|---|
| Availability | Through out the year |
| Pollution | Nil |
| No.of Blocks per sqft | 2.4 |
| Mortar | 10% USE |
| Plastering | Nil |
| Damages | 0.5% to 1% |
Compressive Strength
| Reference | Dimensions (mm) | Area (mm2) | Ultimate Compressive Load (kg) | Ultimate Compressive Stress (N/mm2) |
|---|---|---|---|---|
| Interlock Fly ash Blocks | 300 X 200 X 125 | 60000 | 40000 To 48000 | 6.5 To 7.8 |
| Interlock Fly ash Blocks | 300 X 150 X 125 | 45000 | 19000 To 25000 | 4.1 To 5.4 |
| Solid Blocks | 225 X 150 X 100 | 33750 | 22500 To 31000 | 6.5 To 9.0 |
